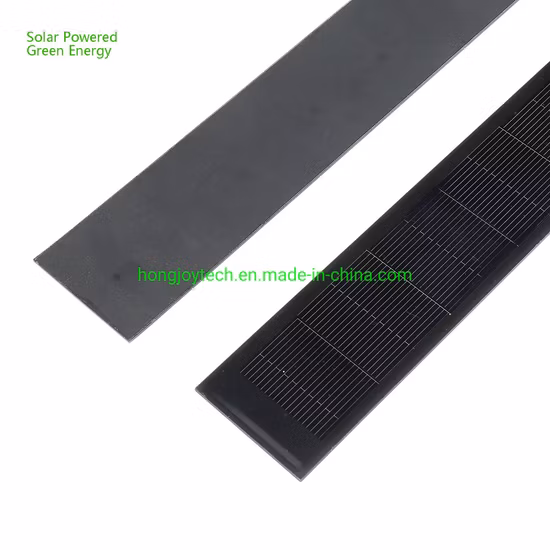

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V

Package Size 10.00cm * 10.00cm * 10.00cm Package Gross Weight 0.500kg Product Specification Hexagon Shape ETFE Embossed
SHARE
Send inquiry

Description

Basic Info.
Condition New
Certification CE
Material Monocrystalline Silicon
Transport Package Master Carton
Trademark OEM
Origin China
HS Code 8504401400
Production Capacity 10000000 PCS/Month
Packaging & Delivery
Package Size 10.00cm * 10.00cm * 10.00cm Package Gross Weight 0.500kg
Product Description
Product Specification

Hexagon Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:26.2V
Working Voltage Vm:4.5V
Working Current Im:24.5mA
Product Dimension: Diagonal 40mmx1.8mm±0.2mm
Water Protection: IPX6
Weight: 3g

Abnormal Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:100mA
Working Voltage Vm:12V
Working Current Im:92mA
Product Dimension: 130mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 25.7g
Fan Shape ETFE Embossed Solar Panel
Product Specification
Rated Power: 8.2W
Tolerance: ±5%
Open Circuit Voltage Voc:24V
Short Circuit Current Isc:440mA
Working Voltage Vm:20V
Working Current Im:410mA
Product Dimension: 473mm*150mm*2mm±0.2mm
Water Protection: IPX6Weight: 140g
Glass Plane Shape Solar Panel
Product Specification
Rated Power: 2.8W
Tolerance: ±5%
Open Circuit Voltage Voc:20.4V
Short Circuit Current Isc:178mA
Working Voltage Vm:17V
Working Current Im:165mA
Product Dimension: 380mm*70mm*5mm±0.5mm
Water Protection: IPX6Weight: 182g
Round Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1W
Tolerance: ±5%
Open Circuit Voltage Voc:14.4V
Short Circuit Current Isc:90mA
Working Voltage Vm:12V
Working Current Im:84mA
Product Dimension: Diameter 100mm*2mm±0.2mm
Water Protection: IPX6
Weight: 24.2g
Square Shape Frosting PET Solar Panel
Product Specification
Rated Power: 1.1W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:235mA
Working Voltage Vm:5V
Working Current Im:220mA
Product Dimension: 80mm*80mm*2mm±0.2mm
Water Protection: IPX6
Weight: 20.2g

Abnormal Shape Frosting Solar Panel
Product Specification
Rated Power: 0.9W
Tolerance: ±5%
Open Circuit Voltage Voc:6V
Short Circuit Current Isc:193mA
Working Voltage Vm:5V
Working Current Im:180mA
Product Dimension: 183mm*65mm*2mm±0.2mm
Water Protection: IPX6
Weight: 28.4g

Round Shape Transparent PET Solar Panel
Product Specification
Rated Power: 0.11W
Tolerance: ±5%
Open Circuit Voltage Voc:5.4V
Short Circuit Current Isc:24mA
Working Voltage Vm:4.95V
Working Current Im:22mA
Product Dimension: Diameter 39.5*1.8mm±0.2mm
Water Protection: IPX6
Weight: 2g

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V-18V Mini Solar Panel 0.1-10W 3.3V 4V 5V 6V 9V 12V 18V Photovoltaic PV Module with Customized Irregular Shape

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V-18V Mini Solar Panel 0.1-10W 3.3V 4V 5V 6V 9V 12V 18V Photovoltaic PV Module with Customized Irregular Shape

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V-18V Mini Solar Panel 0.1-10W 3.3V 4V 5V 6V 9V 12V 18V Photovoltaic PV Module with Customized Irregular Shape

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V-18V Mini Solar Panel 0.1-10W 3.3V 4V 5V 6V 9V 12V 18V Photovoltaic PV Module with Customized Irregular Shape

Waterproof Pet ETFE Laminated Small Solar Cell 0.5V-18V Mini Solar Panel 0.1-10W 3.3V 4V 5V 6V 9V 12V 18V Photovoltaic PV Module with Customized Irregular Shape
